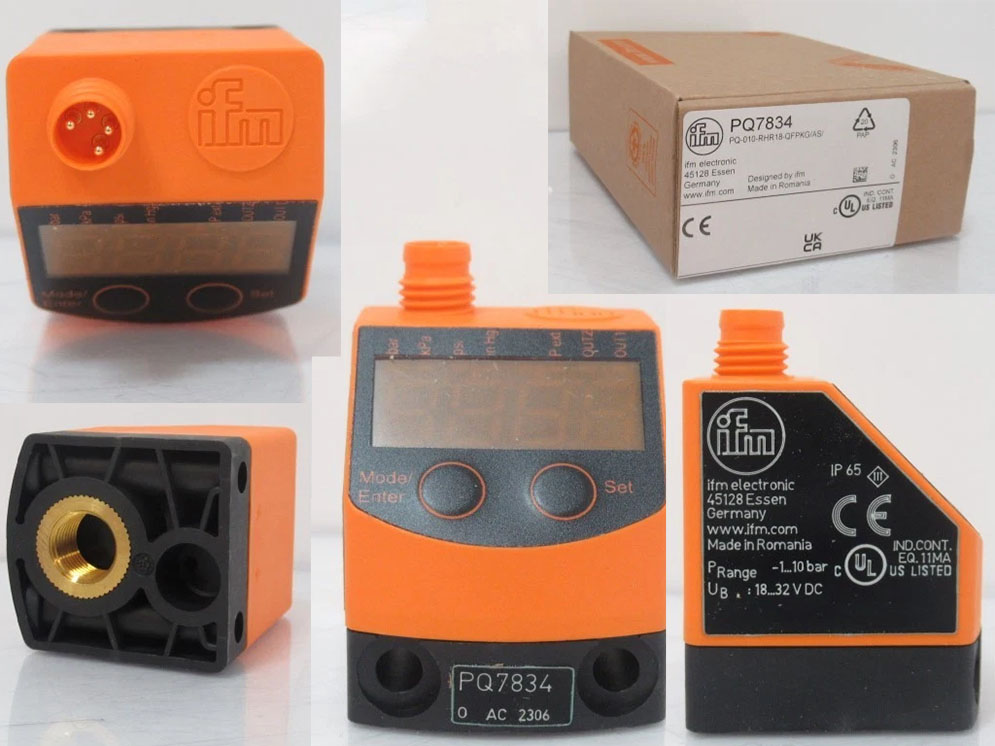

IFM PQ7834 | PQ-010-RHR18-QFPKG/AS/ là Cảm biến áp suất khí nén, -1 ... +10 bar
- Giám sát áp suất hệ thống đáng tin cậy trong hệ thống khí nén và khí nén
- Khả năng chịu áp suất quá cao và chân không rất cao
- Màn hình LED nghiêng hiển thị rõ ràng
- Màn hình hiển thị đỏ/xanh lá cây để nhận biết rõ phạm vi cho phép
- Hai đầu ra chuyển mạch, một trong số đó có thể được cấu hình làm đầu ra chẩn đoán
- Tài liệu kỹ thuật của Cảm biến áp suất khí nén IFM PQ7834 ở đây.
Thông số kỹ thuật của Cảm biến áp suất -1 +10 bar IFM PQ7834 | PQ-010-RHR18-QFPKG/AS/
| Number of inputs and outputs |
Number of digital outputs: 2 |
| Measuring range |
| -1...10 bar |
-15...145 psi |
-30...296 inHg |
-100...1000 kPa |
|
| Process connection |
threaded connection G 1/8 internal thread |
Ứng dụng của Cảm biến áp suất -1 +10 bar IFM PQ7834 | PQ-010-RHR18-QFPKG/AS/
| Special feature |
Gold-plated contacts |
| Application |
for industrial applications |
| Media |
compressed air |
| Conditionally suitable for |
other media on request |
| Medium temperature[°C] |
0...60 |
| Min. burst pressure |
| 30 bar |
435 psi |
886 inHg |
3000 kPa |
|
| Pressure rating |
| 20 bar |
290 psi |
591 inHg |
2000 kPa |
|
| Vacuum resistance |
|
| Type of pressure |
relative pressure; vacuum |
Electrical data của Cảm biến áp suất -1 +10 bar IFM PQ7834 | PQ-010-RHR18-QFPKG/AS/
| Operating voltage[V] |
18...32 DC; (to SELV/PELV) |
| Current consumption[mA] |
< 50 |
| Min. insulation resistance[MΩ] |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Overvoltage protection |
yes; (< 40 V) |
| Power-on delay time[s] |
0.3 |
| Integrated watchdog |
yes |
Inputs / outputs của Cảm biến áp suất -1 +10 bar IFM PQ7834 | PQ-010-RHR18-QFPKG/AS/
| Number of inputs and outputs |
Number of digital outputs: 2 |
Outputs của Cảm biến áp suất -1 +10 bar IFM PQ7834 | PQ-010-RHR18-QFPKG/AS/
| Total number of outputs |
2 |
| Output signal |
switching signal |
| Electrical design |
PNP |
| Number of digital outputs |
2 |
| Output function |
normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] |
2 |
| Permanent current rating of switching output DC[mA] |
100 |
| Switching frequency DC[Hz] |
< 200 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
Measuring/setting range của Cảm biến áp suất -1 +10 bar IFM PQ7834 | PQ-010-RHR18-QFPKG/AS/
| Measuring range |
| -1...10 bar |
-15...145 psi |
-30...296 inHg |
-100...1000 kPa |
|
| Set point SP |
| -0.9...10 bar |
-13...145 psi |
-26...296 inHg |
-90...1000 kPa |
|
| Reset point rP |
| -0.95...9.95 bar |
-14...144 psi |
-28...294 inHg |
-95...995 kPa |
|
| In steps of |
| 0.05 bar |
1 psi |
2 inHg |
5 kPa |
|
Accuracy / deviations của Cảm biến áp suất -1 +10 bar IFM PQ7834 | PQ-010-RHR18-QFPKG/AS/
| Switch point accuracy[% of the span] |
< ± 0,5 |
| Repeatability[% of the span] |
< ± 0,1; (with temperature fluctuations < 10 K) |
| Characteristics deviation[% of the span] |
< ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) |
| Hysteresis deviation[% of the span] |
< ± 0,25 |
| Long-term stability[% of the span] |
< ± 0,05; (per 6 months) |
| Temperature coefficient zero point[% of the span / 10 K] |
0,2; (0...60 °C) |
| Temperature coefficient span[% of the span / 10 K] |
0,2; (0...60 °C) |
Response times của Cảm biến áp suất -1 +10 bar IFM PQ7834 | PQ-010-RHR18-QFPKG/AS/
| Response time[ms] |
< 2.5 |
| Delay time programmable dS, dr[s] |
0; 0,002...5 |
Software / programming của Cảm biến áp suất -1 +10 bar IFM PQ7834 | PQ-010-RHR18-QFPKG/AS/
| Parameter setting options |
hysteresis / window; normally open / normally closed; diagnostic function; switching logic; switch-on/switch-off delay; Damping; Display unit |
Operating conditions của Cảm biến áp suất -1 +10 bar IFM PQ7834 | PQ-010-RHR18-QFPKG/AS/
| Ambient temperature[°C] |
0...70 |
| Storage temperature[°C] |
-25...85 |
| Protection |
IP 65 |
Tests / approvals của Cảm biến áp suất -1 +10 bar IFM PQ7834 | PQ-010-RHR18-QFPKG/AS/
| EMC |
| EN 61000-4-2 ESD |
4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated |
10 V/m |
| EN 61000-4-4 Burst |
2 kV |
| EN 61000-4-5 Surge |
0,5/1 kV |
| EN 61000-4-6 HF conducted |
10 V |
|
| Shock resistance |
| DIN IEC 68-2-27 |
50 g (11 ms) |
|
| Vibration resistance |
| DIN IEC 68-2-6 |
20 g (10...2000 Hz) |
|
| MTTF[years] |
455 |
| Pressure Equipment Directive |
Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
Mechanical data của Cảm biến áp suất -1 +10 bar IFM PQ7834 | PQ-010-RHR18-QFPKG/AS/
| Weight[g] |
84.5 |
| Housing |
rectangular |
| Dimensions[mm] |
42 x 30 x 32 |
| Materials |
PBT; FKM; polyester |
| Materials (wetted parts) |
brass; FKM; silicon (coated); PBT |
| Min. pressure cycles |
50 million |
| Process connection |
threaded connection G 1/8 internal thread |
Displays / operating elements của Cảm biến áp suất -1 +10 bar IFM PQ7834 | PQ-010-RHR18-QFPKG/AS/
| Display |
| Display unit |
4 x LED, green |
| switching status |
2 x LED, yellow |
| function display |
alphanumeric display, 4-digit |
| measured values |
alphanumeric display, 4-digit |
|
| Display unit |
bar; kPa; psi; inHg |
Accessories của Cảm biến áp suất -1 +10 bar IFM PQ7834 | PQ-010-RHR18-QFPKG/AS/
| Accessories (optional) |
| mounting set for DIN rail: TH 35-7,5 / EN60715, E37340 |
| Thread extension: 1/8", E30075 |
| push-in air fitting for tube: Ø 6 mm, E30076 |
| push-in air fitting for tube: Ø 8 mm, E30077 |
|
Remarks của Cảm biến áp suất -1 +10 bar IFM PQ7834 | PQ-010-RHR18-QFPKG/AS/
Electrical connection của Cảm biến áp suất -1 +10 bar IFM PQ7834 | PQ-010-RHR18-QFPKG/AS/
| Connector |
1 x M8; coding: A; Contacts: gold-plated |
