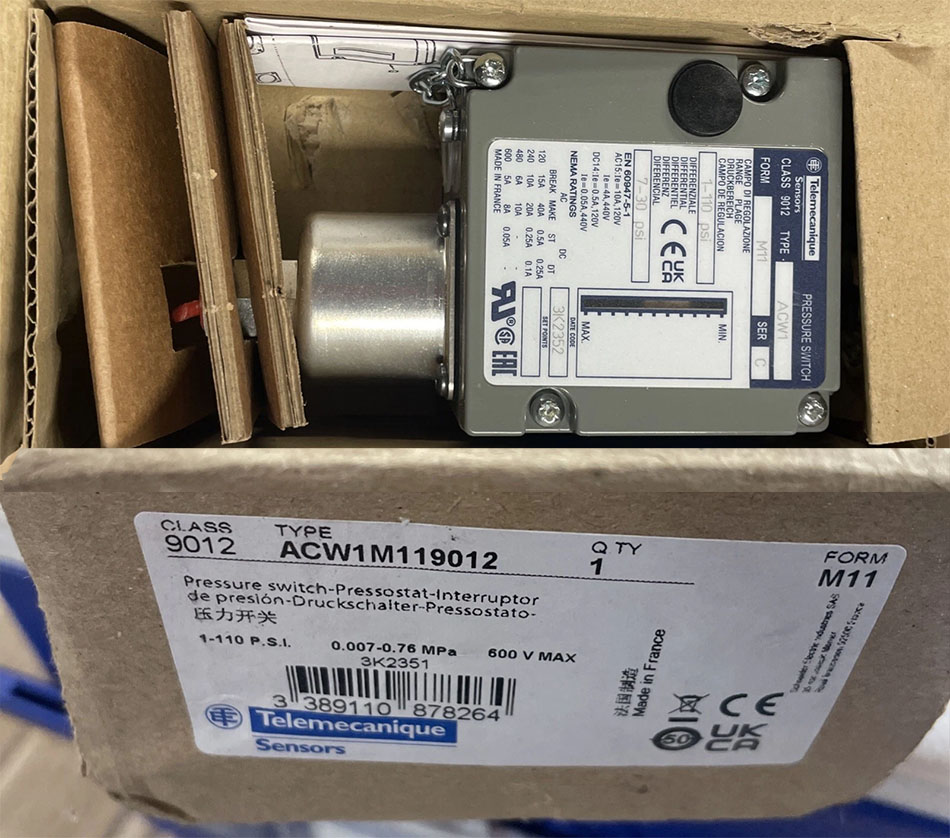

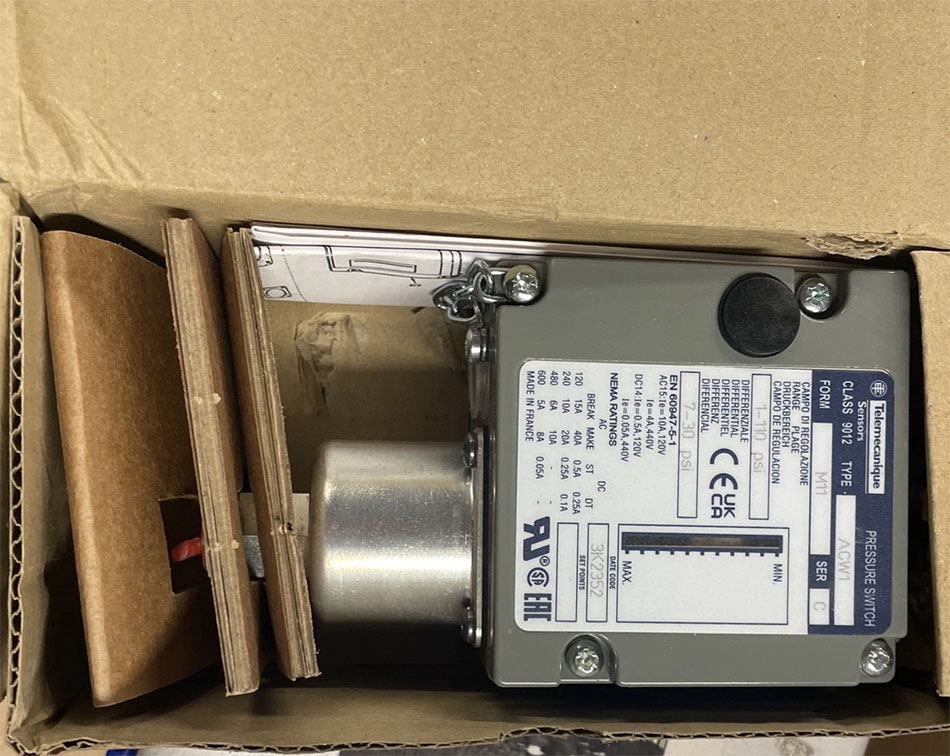

Telemecanique ACW1M119012 là Cảm biến áp suất, 17 bar Max., 1CO, Snap Action, M20 Cable Gland, G1/4 Female



- Tài liệu kỹ thuât của Cảm biến áp suất Telemecanique ACW1M119012 ở đây.





Thông số kỹ thuật của của Cảm biến áp suất Telemecanique ACW1M119012

Main
Range of product	Telemecanique Pressure sensors XM
Pressure sensor name	ACW
Pressure sensor type	Electromechanical pressure sensor
Product specific application	For regulation between 2 thresholds
Scale type	Adjustable differential
Contacts type and composition	1 C/O snap action
Cable entry	1 entry tapped for ISO M20 cable gland
Fluid connection type	G 1/4 (female) conforming to ISO 228
Materials in contact with fluid	Phosphor bronze
Pressure actuator	Bellows
Electrical circuit type	Control circuit
Complementary
Electrical connection	Screw-clamp terminals, clamping capacity: 1 x 1...2 x 2.5 mm²
Controlled fluid	Air (-73-125 °C), hydraulic oil (-73-125 °C), non-corrosive fluid (-73-125 °C)
Enclosure material	Zinc alloy
Setting	External
Local display	Without
Terminals description ISO n°1
	(3-4)NO (1-2)NC
Environment
Protective treatment	TC
Standards	CE IEC 60947-5-1
Product certifications	CSA UL recognized
IP degree of protection	IP65 conforming to IEC 60529
Packing Units
Unit type of package 1	PCE
Number of units in package 1	1
Package 2 height	8.2 CENTIMETER
Package 2 width	10 CENTIMETER
Package 2 length	20.5 CENTIMETER
Package 2 weight	1.566 KILOGRAM
Indivisible sale quantity	1



Tham khảo thêm các model khác cùng loại với Cảm biến áp suất Telemecanique ACW1M119012:

ACW1M119012
Pressure sensors XM, Electromechanical pressur sensor switch, adjustable differential 17 Bar max

ACW1M129012
Pressure sensors XM, pressure switch ACW 7.6 bar, adjustable scale 2 thresholds, 1CO

ACW21M129012
Pressure sensors XM, pressure switch ACW 7.6 bar, adjustable scale 2 thresholds, 2CO

ACW23M129012
Pressure sensors XM, pressure switch ACW 0.7 bar, adjustable scale 2 thresholds, 2CO

ACW25M119012
Pressure sensors XM, pressure switch ACW 5.2 bar, adjustable scale 2 thresholds, 2CO

ACW28M119012
Pressure sensors XM, pressure switch ACW 12 bar, adjustable scale 2 thresholds, 2CO

ACW4M129012
Pressure sensors XM, pressure switch ACW 1.4 bar, adjustable scale 2 thresholds, 1CO

ACW5M119012
Pressure sensors XM, pressostat, with 0,07 to 7,6 bars, ACW5

ACW5M129012
Pressure sensors XM, pressure switch ACW 5.2 bar, adjustable scale 2 thresholds, 1CO

ACW7M129012
Pressure sensors XM, pressure switch ACW 69 bar, adjustable scale 2 thresholds, 1CO

ACW8M119012
Pressure sensors XM, pressostat, with 0,07 to 7,6 bars, ACW8

ACW8M129012
Pressure sensors XM, pressure switch ACW 12 bar, adjustable scale 2 thresholds, 1CO

ADW3M129012
Pressure sensors XM, pressure switch ADW 69 bar, adjustable scale 2 thresholds, 1CO

ADW4M129012
Pressure sensors XM, pressure switch ADW 210 bar, adjustable scale 2 thresholds, 1CO

ADW6M119012
Pressure sensors XM, Electromechanical pressur sensor switch, 210 Bar adjustable

ADW6M129012
Pressure sensors XM, pressure switch ADW 210 bar, adjustable scale 2 thresholds, 1CO

ADW7M129012
Pressure sensors XM, pressure switch ADW 340 bar, adjustable scale 2 thresholds, 1CO
