Cảm biến chênh áp và lưu lượng Siemens 7MF0340-1GN01-5MF2-Z A03+E01+H03+K52+K81

THÔNG TIN THAM KHẢO

• Danh mục Model sản phẩm SIEMENS

•

  Cảm biến áp suất Siemens 7MF1565

•

  Cảm biến áp suất Sick PET-1RP PET-1RB -Đặc tính, Ưu điểm, Ứng dụng và Các models

• Xem thêm

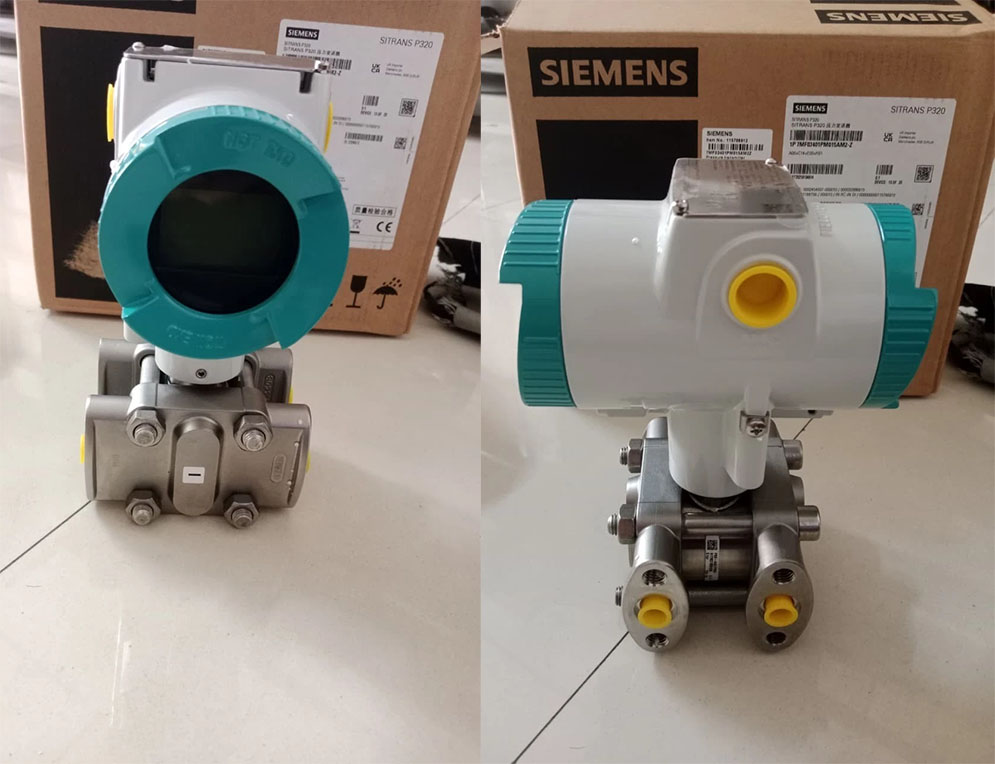

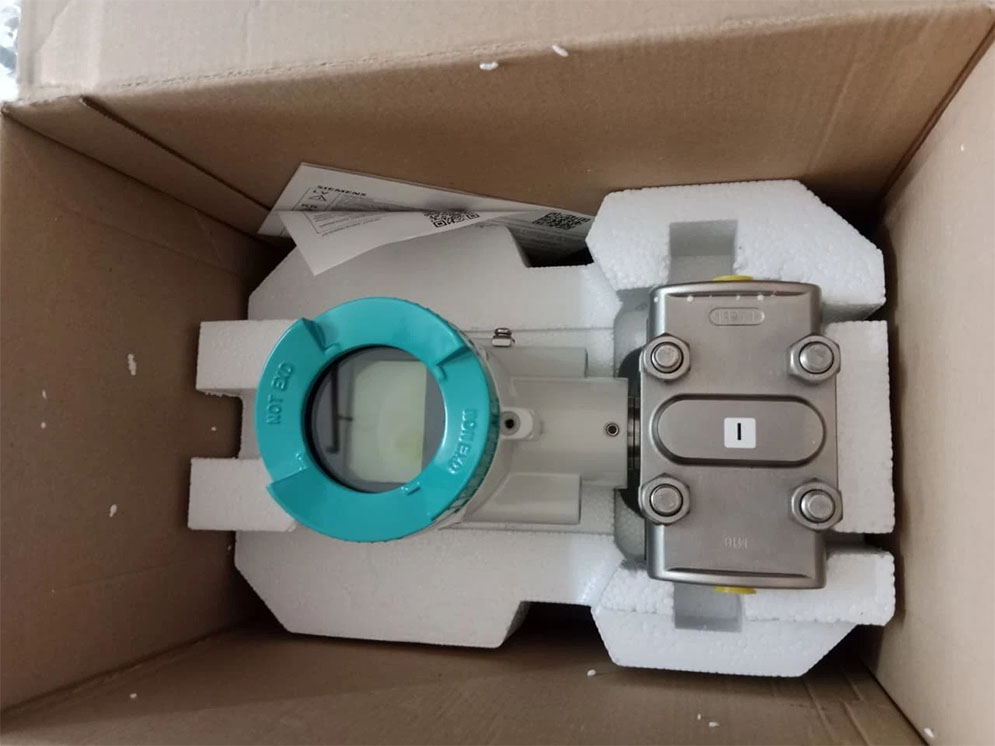

Siemens 7MF0340-1GN01-5MF2-Z A03+E01+H03+K52+K81 là Cảm biến áp suất SITRANS P320, đo áp suất chênh lệch và lưu lượng

SITRANS P320 Pressure transmitter Differential pressure and flow PN160 HART (4...20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 250 mbar (100.5 inH²O) Oval flange, fastening thread: 7/16-20 UNF (IEC 61518) with lateral venting Process connection: Stainless steel 316L/1.4404, Seal diaphragms: Stainless steel 316L/1.4404, Sensor differential pressure: Process flange: Stainless steel 316/1.4408 (PN160) // 316Ti/1.4571 (PN420) Die-cast aluminum housing Dual chamber device Intrinsic safety, Dust ignition proof zone 20/21/22 (DIP), increased safety zone 2 2 x M20 x 1.5 With display (lid with glass window) Cable gland and sealing plug attached, stainless steel 316L/1.4404 General approval without Ex approval: World (CE, UKCA, RCM, CSA, EAC, FM, KC) Mounting bracket, stainless steel 1.4404/316L O-ring, process flanges, FFKM, (FFPM) (Not permitted in case of double side mounted remote seal) Process flanges for vertical differential pressure lines (half flange)


- Tài liệu kỹ thuật của Cảm biến chênh áp và lưu lượng Siemens 7MF0340-1GN01-5MF2-Z A03+E01+H03+K52+K81 ở đây.


Thông số kỹ thuật của Cảm biến chênh áp và lưu lượng Siemens 7MF0340-1GN01-5MF2-Z A03+E01+H03+K52+K81

Product related của Cảm biến chênh áp và lưu lượng Siemens 7MF0340-1GN01-5MF2-Z A03+E01+H03+K52+K81

Article number
7MF0340-1GN01-5MF2-Z A03+E01+H03+K52+K81
Life cycle status Active Product
Product Family –
EAN –
UPC –
Commodity Code –

Delivery related của Cảm biến chênh áp và lưu lượng Siemens 7MF0340-1GN01-5MF2-Z A03+E01+H03+K52+K81

Export Control Regulations ECCN : EAR99 / AL : N
Standard delivery time 25 Day/Days
Packaging dimensions (L x W x H) Not available
Net weight 4.00 Kg
Quantity Unit 1 Piece
Packaging Quantity 1
Minimum Order Quantity 1
Dangerous goods No


Environment related của Cảm biến chênh áp và lưu lượng Siemens 7MF0340-1GN01-5MF2-Z A03+E01+H03+K52+K81

WEEE (2012/19/EU) Take-Back Obligations Yes
Compliance with the substance restrictions according to RoHS directive Since: 17-09-18
REACH Art. 33 Duty to inform according to the current list of candidates Reach Information
SCIP Number not available


Siemens specific của Cảm biến chênh áp và lưu lượng Siemens 7MF0340-1GN01-5MF2-Z A03+E01+H03+K52+K81

Product Group 4770
Catalog ID FI01-1
Group Code R3P0
Country of origin France
Product class C: products manufactured / produced to order, which cannot be reused or re-utilized or be returned against credit.


Classification của Cảm biến chênh áp và lưu lượng Siemens 7MF0340-1GN01-5MF2-Z A03+E01+H03+K52+K81

eClass
- Version : 16, Classification : 27-20-06-14
- Version : 14, Classification : 27-20-06-14
- Version : 12, Classification : 27-20-06-14
- Version : 9.1, Classification : 27-20-06-14
- Version : 9, Classification : 27-20-06-14
- Version : 8, Classification : 27-20-06-14
- Version : 7.1, Classification : 27-20-06-14
- Version : 6, Classification : 27-20-06-14

ETIM
- Version : 10, Classification : EC002990
- Version : 9, Classification : EC002990
- Version : 8, Classification : EC002990
- Version : 7, Classification : EC002990
